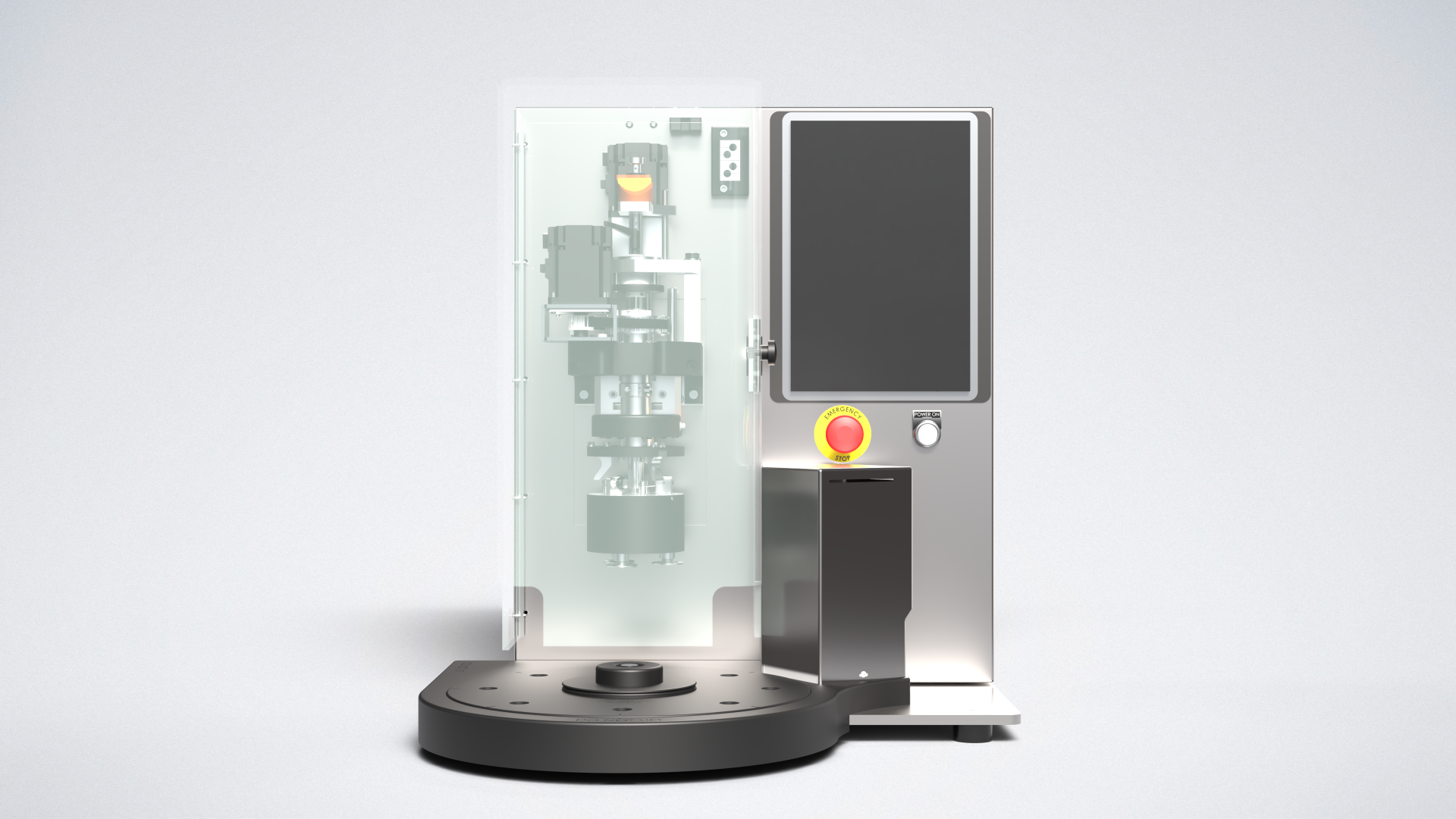

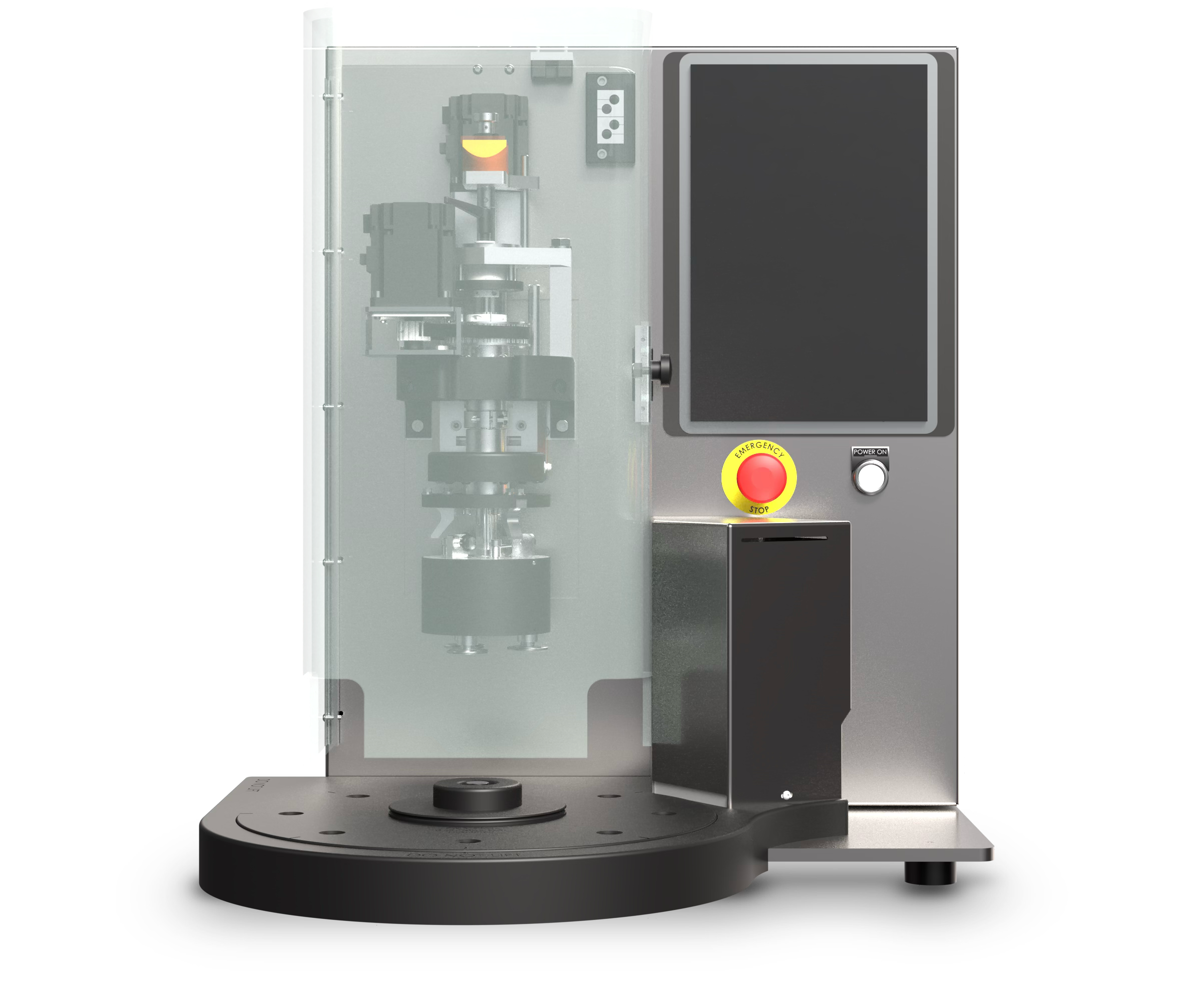

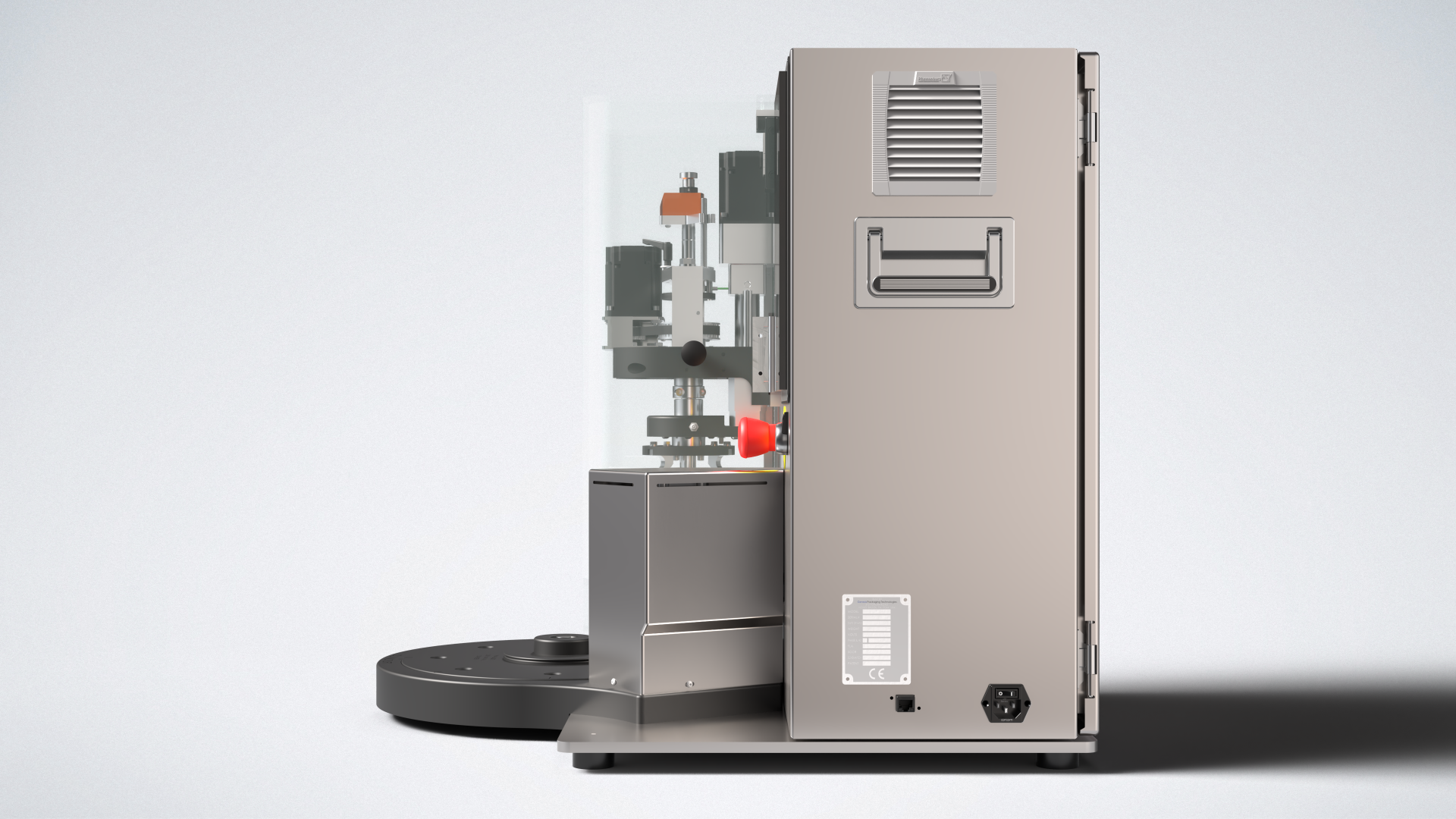

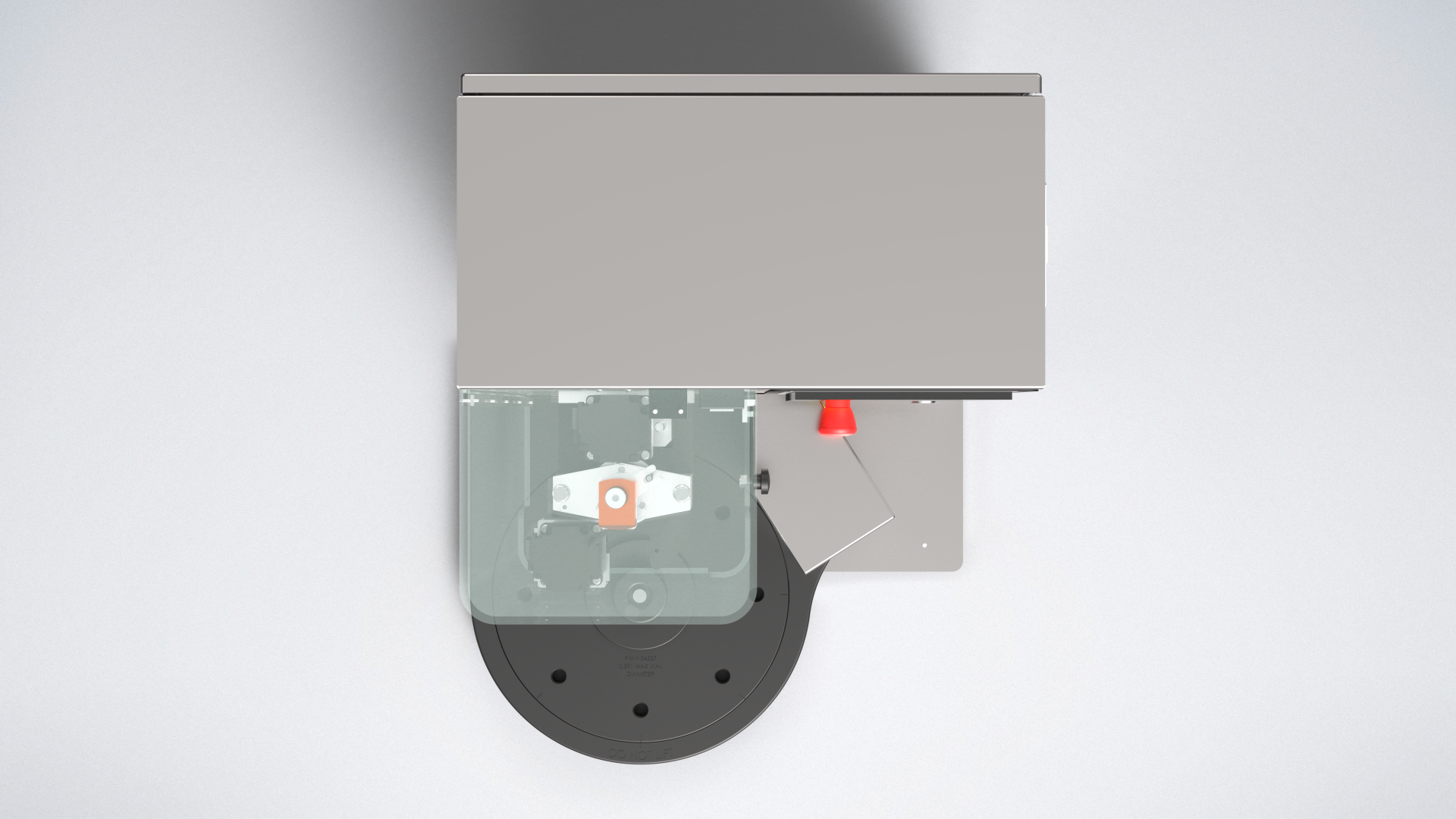

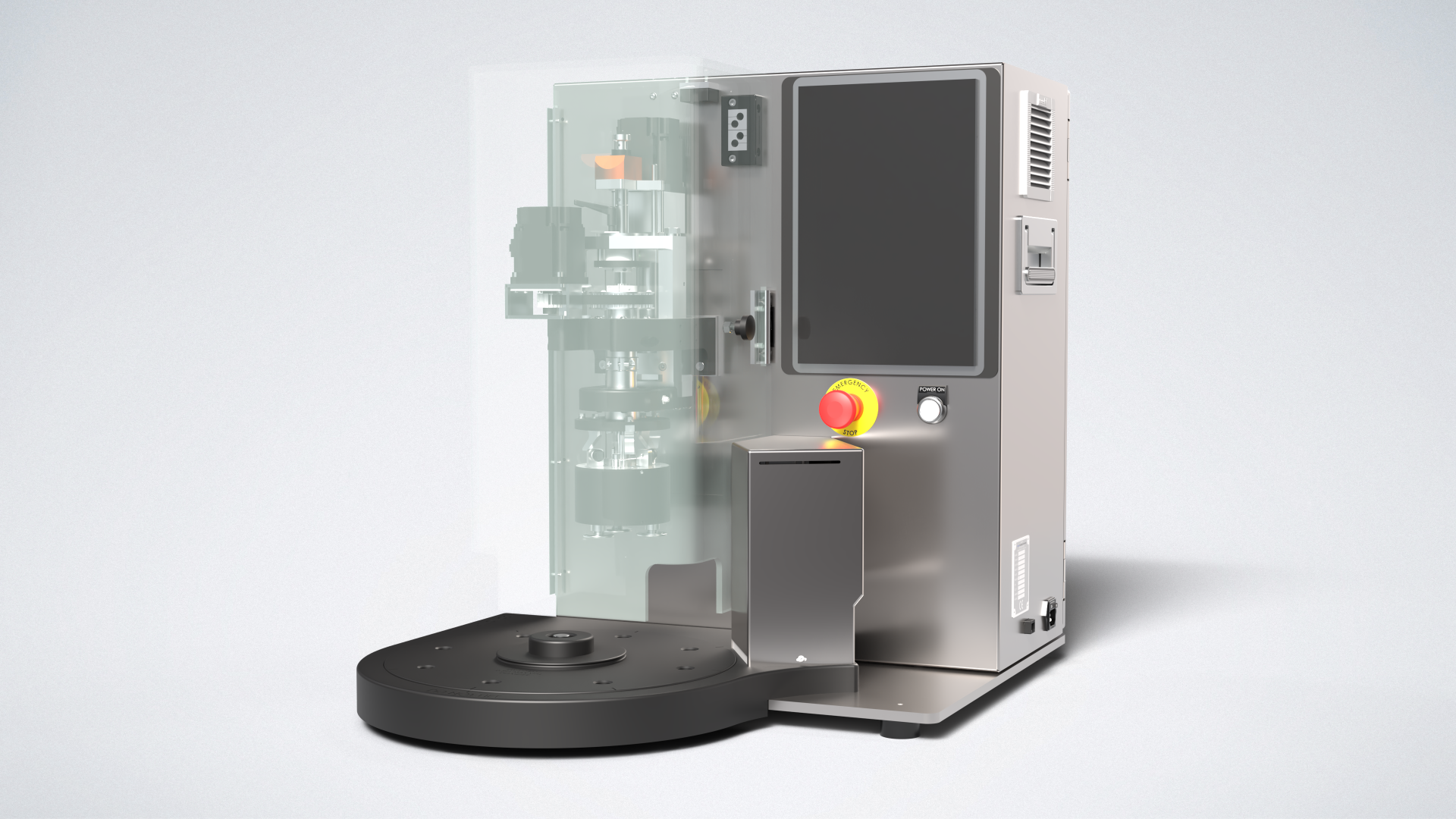

The Compact Integra with Starwheel
The Integra is also available with an automated indexing 8 pocket starwheel in a compact size making it ideal for use in smaller spaces such as in an isolator.
Description
This space-saving design is ideal for environments with limited room, such as isolators, laminar flow hoods, or small cleanrooms. During operation, the starwheel automatically advances vials through the sealing station, while the operator hand-places and removes each assembled vial, ensuring careful handling and inspection. The compact Integra is capable of sealing up to 10 vials per minute, providing efficient throughput in a small footprint. For added convenience and ergonomic operation, an optional foot pedal is available to control the start and stop functions of the machine.
Existing Single Vial Integra units can be retrofitted with this compact starwheel assembly. Please get in touch with us for more information.
Gallery
Specifications
| Vial Finish Diameter | Vial Diameter | Vial Height | Power | Size | Weight |
|---|---|---|---|---|---|
| 8mm to 20mm | Up to 50mm | Up to 101mm | 110V AC | 22.75" W x 25" D x 28" H | 185 lbs |
Features include an all stainless steel construction with plastic feet and acrylic safety enclosure. The Operator Interface is a 10.1 inch touchscreen panel.
All manuals for the Integra Laboratory Crimper are provided digitally as a PDF file.
3D Model
Available Options for All Integras
Recipes
Recipes
Pre-programmed recipe buttons with optimized sealing settings for each package.
Networking
Networking
User/Active Directory & Network Integration.
Reporting
Reporting
Data Storage/Reports (21CFR11 capable).
VHP Certified
All Integras are Certified for Use with VHP
All Integra models have been certified for use with Vaporized Hydrogen Peroxide making them ideal for small batch use within an isolator.
